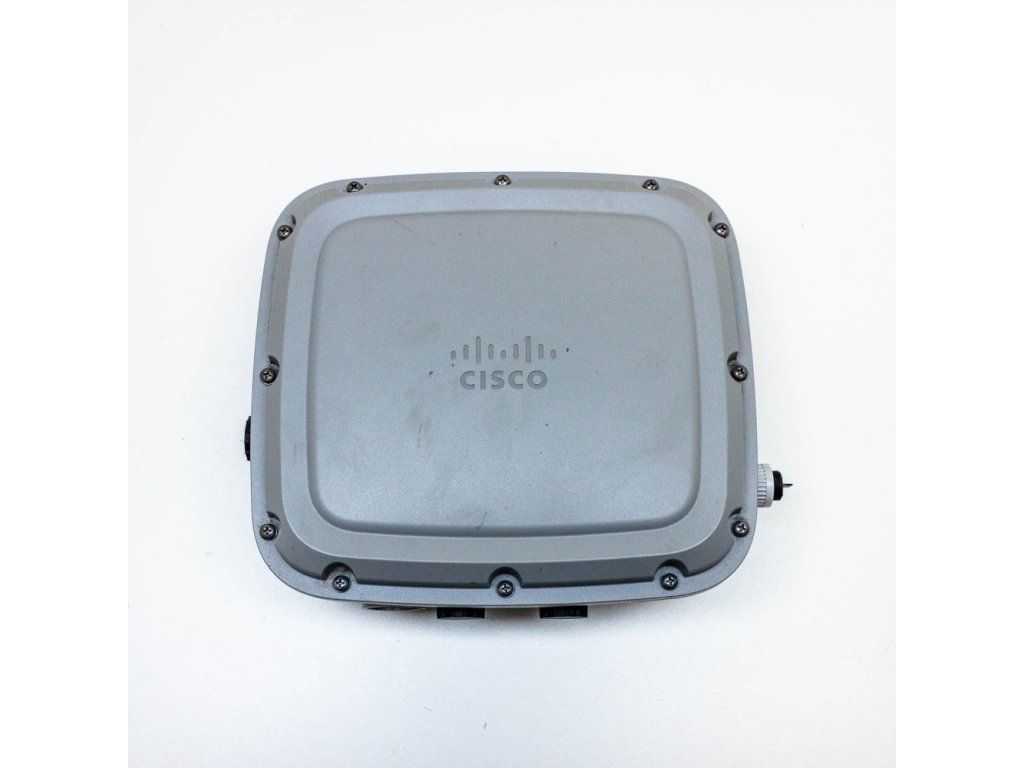

Cisco access point C9124AXD-E

Cisco Catalyst 9124AXD-E is an outdoor Wi‑Fi 6 (802.11ax) access point designed for demanding environments, delivering high performance, flexibility, and security for modern enterprise networks. This model features two 5 GHz radio modules, enabling dual 5 GHz operation with a maximum data rate of up to 5.38 Gbps. MU-MIMO and OFDMA technologies help manage high device density efficiently and reduce latency.

Key features include:

• Dual 5 GHz band: Maximum throughput up to 5.38 Gbps (160 MHz on 5 GHz, 20 MHz on 2.4 GHz).
• 4x4 MU-MIMO: Four spatial streams for higher capacity and efficiency.
• OFDMA: Enables simultaneous communication with multiple devices, improving overall network performance.
• Bluetooth 5.0: Integrated radio module for IoT applications such as location tracking and navigation.
• Multigigabit Ethernet (2.5 Gbps): Supports high-speed connectivity via PoE+ (802.3at) or Cisco UPOE+.
• Rugged design: Certified for outdoor use with an operating temperature range from -20°C to 50°C and resistance to moisture and dust.

Thanks to these features, the Cisco Catalyst 9124AXD-E is an ideal choice for high-density deployments such as schools, stadiums, campuses, and industrial areas. It is compatible with Cisco Catalyst 9800, 3500, 5520, 8540, and virtual wireless controllers, enabling easy integration into existing networks.
