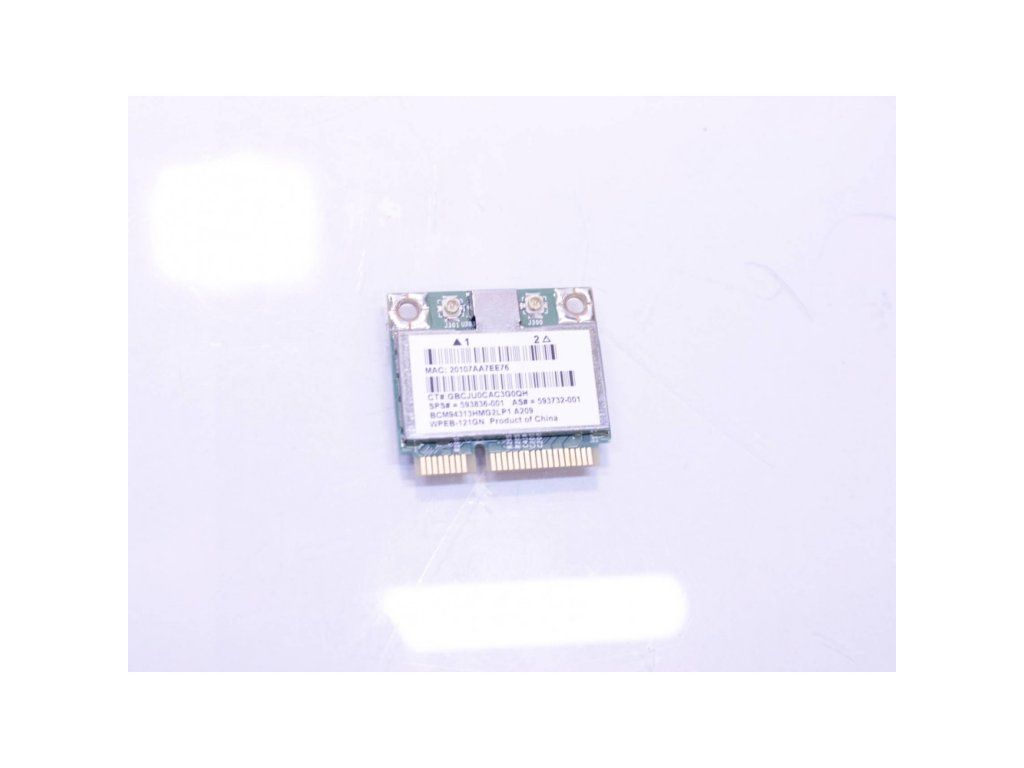

Broadcom BCM94313HMG2LP1 – Wi‑Fi 802.11b/g/n + Bluetooth 3.0 (Half Mini PCIe)
Combined Wi‑Fi and Bluetooth card Broadcom BCM94313HMG2LP1 in Half Mini PCIe form factor. Supports Wi‑Fi 802.11b/g/n and Bluetooth 3.0, providing stable wireless connectivity for notebooks and other devices.
The Broadcom BCM94313HMG2LP1 wireless card is a compact solution combining Wi‑Fi 802.11b/g/n and Bluetooth 3.0. With support for MIMO technology, it offers higher transfer speeds and better signal coverage. The card is designed for notebooks with a Half Mini PCIe slot, providing reliable internet connectivity and wireless pairing with other devices via Bluetooth.
Supported protocols include WEP, WPA, WPA2 and other encryption methods for secure connections. It is compatible with most common notebooks, but we recommend checking compatibility with your specific device model.
Technical specifications:
- Manufacturer: Broadcom
- Model: BCM94313HMG2LP1
- Wi‑Fi standards: IEEE 802.11b/g/n
- Frequency: 2.4 GHz
- Data rate: up to 150 Mbps (1x1 MIMO)
- Encryption: WEP, WPA, WPA2, AES, TKIP
- Bluetooth: 3.0 + HS
- Interface: Half Mini PCIe
- Antenna connectors: 2x U.FL (internal antennas)
- Supported OS: Windows, Linux (depending on driver availability)
- Dimensions: standard Half Mini PCIe form factor
- Compatibility: Notebooks with a Half Mini PCIe slot (check with the manufacturer)
Additional parameters
| Category: | Wi‑Fi & Bluetooth modules |
|---|---|
| EAN: | 8596701047120 |
